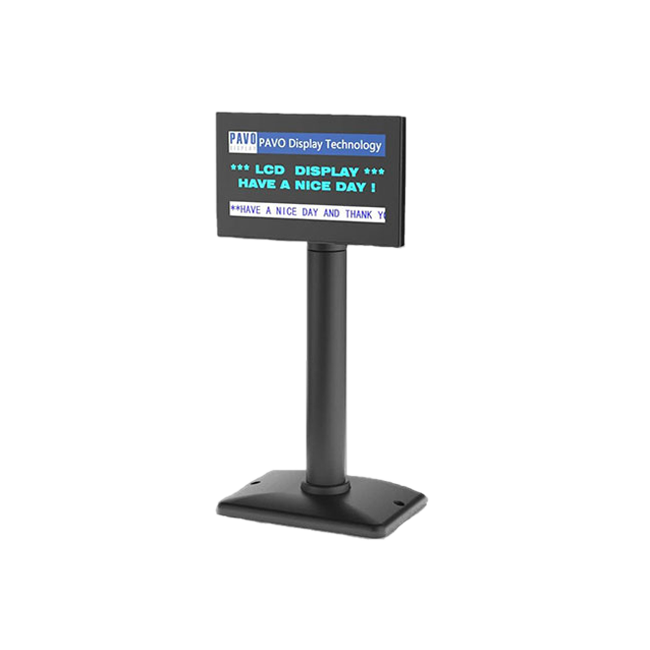

PD500-II 5” Pole Customer Display LCD Monitor with USB 2.0,VGA or HDMI interfaces,supports 800*480 and optional resolution 1024*600,and show 20 columns × 2 lines and optional characters (20 colums × 4 line) with multiple languages,which suits for different situations like food truck,restaurants,clothing stores,retails.Show images in whole 5 inch lcd monitor while standby cutomer display trays.
General | |
Display Method | TFT – LCD Display（5 inch COLOR PANEL） |
Pattern | 20columns×2line )/(20colums×4 line)， Show images full screen when standby state |
Brightness | ＞350cd/m2 |
Resolution | 800*480 |
Character font | 40*80 dot matrix |
Character type | 95 Alphanumeric，32 international characters |
Character size | 10.8（H）×5.4（W）mm |
Dot size（X×Y） | 0.135×0.135mm |
Active area | 108（L）mm×24.8（W）mm |
Pole Dimension | Per support length：163（L）×27.65（DIA）mm/ 80（L）×27.65（DIA）mm |
Base Dimension | 126（L）×89（W）×13.5（H）mm |
Viewing Angle | Max.135° |
Horizontal Rotation | Max.355° |
Weight | 490 grams/506grams |
Commands Mode | 15 kinds, E.g LD220, ESC/POS, AEDEX, UTC/S, UTC/P, ADM788, DSP800, CD5220, EMAX, LOGIC CONTROL etc |
Language Support | CP437, Katakana, CP850, CP860, CP863,CP865, WCP1252, CP857, WCP1250, WCP1253,WCP1255, WCP1251, CP866, CP852, CP737, CP858, CP864,WCP1257, WCP1258，Tai（CP874），CP936 |
Interface | RS-232（serial）/USB |
Baud | Direct connection 9600/19200/38400/57600/115200 bps |
MTBF | 30000 hours |
Consumption | 5-24 VDC |
EMC standards Safety standards | FCC，CE，ROHS. |
